Out of resolution-NVRsolo/NVRsolo Plus local display

Symptom
It shows "Out of resolution" on the local display monitor.

Cause
We have the limitation of resolution with NVRsolo local display.
The maximum resolution of NVRsolo local display differs by video codec.

Solution
Please kindly check the local display limitation of NVRsolo in the local side.  (NVRsolo Performance Guide)

Local Display performance limitation on NVRsolo series:

H.264: No resolution limitation on single channel, the total capacity is around:
8 channels: 5M / others: 2M
6 channels 8M /  others: 2M
*The actual performance depends on the type of cameras

MPEG4: Up to 2M (1920x1080) per channel

MJPEG: Up to 4M (2560x1600) per channel but with limited fps support

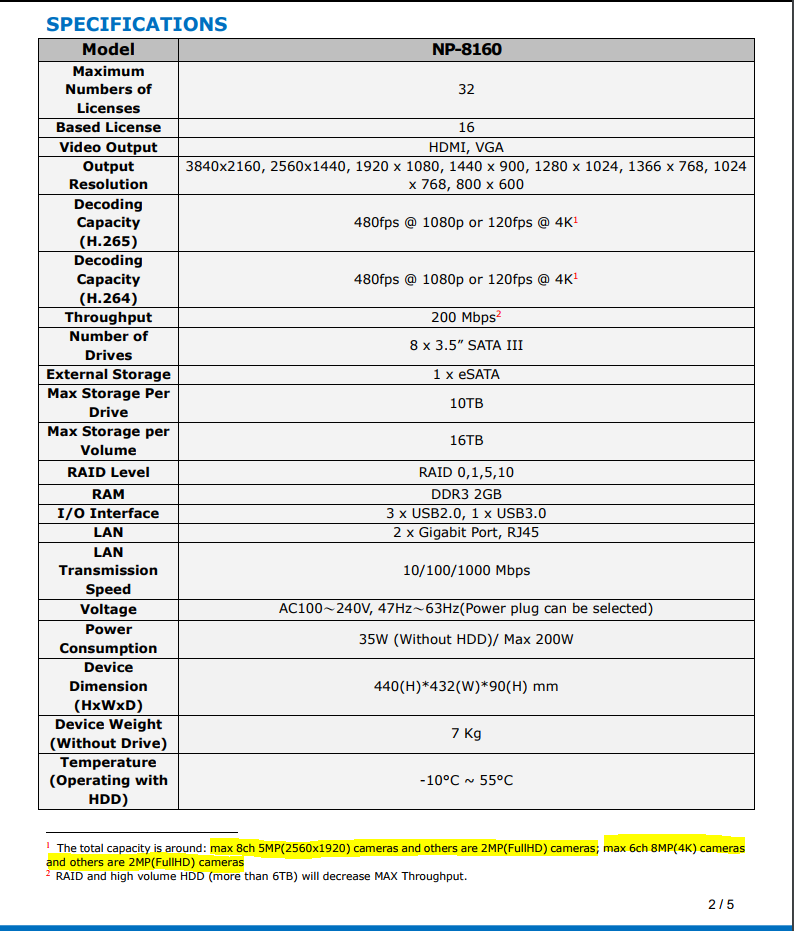

Please kindly check the local display limitation of NVRsolo Plus in local side. (Full Specification sheet)

Local Display performance limitation on NVRsolo Plus:

The total capacity is around:
8 channels: 5M / others: 2M
6 channels 8M /  others: 2M
*The actual performance depends on the type of cameras




Noted that there is no such limitation in the client PC where you use Remote live viewer, as long as the CPU is powerful enough to handle.
