How to lower the IVS CPU loading

Description:



The Video Analytics require computer resource to get the result.
視頻分析需要電腦資源才能獲得結果。

If the source contains more data, the process loading increase.
如果來源包含更多數據資料,則處理過程會增加負載。

Therefore, we recommend the customer to use CIF & 15FPS for IVS.
因此,我們建議客戶使用CIF解析度和15FPS進行IVS。

The following picture is where you can locate the streaming setting of IVS.
您可以在下面的圖片中找到IVS的流媒體設置。



In mainconsole:

1. In Setting => System setting => Camera => camera setting, enable multi-stream

2. In camera setting and choose/modify a stream close to CIF and 15 FPS

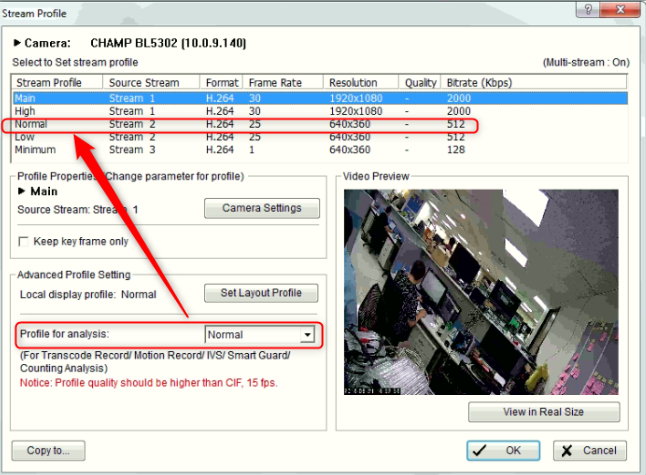

3. In Setting => System setting => Camera => stream profile, adjust profile for analysis



In crystal:

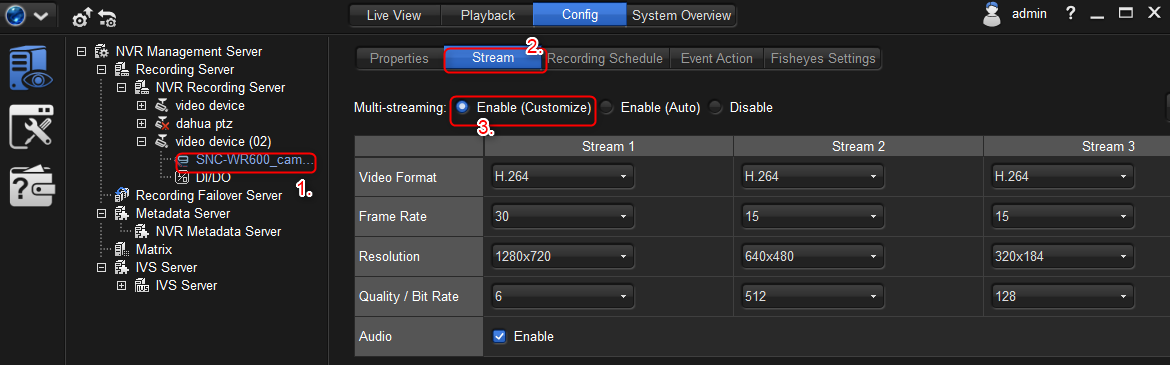

1.1 Config => Video Device => Camera model => "Stream" settint

1.2 Enable the Multi-streaming in the camera stream settings.

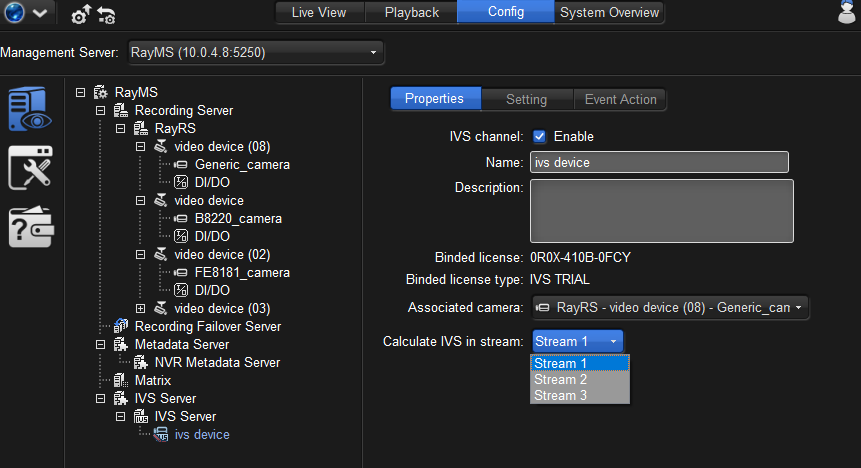

2.1 Config =>IVS server => IVS device => Properties

2.2 Select a stream according to your settings.
