How to set up motion recording using cameras' motion detection (Mainconsole)?

Purpose

Once the recording on "edge motion" is set up, we can achieve the following benefits:

1. saving disk usage space.
2. maintain moderate server CPU loading, as image analysis process is done by the cameras.

Procedures

Before start, please make sure the IP camera is supported by NUUO NVR, and the on-edge motion is also supported. Please go to NUUO camera support list and find the camera (see below image for an example).

We must do the following:

• Set up motion detection in a camera.
• Make sure edge motion detection can be received by Mainconsole.
• Use the motion detection as an event to trigger the recording.
• Start recording.

Set up motion detection in a camera

Make sure the motion detection function is enabled on the camera and it is functional.

Make sure edge motion detection can be received by Mainconsole

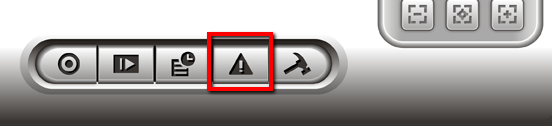

1. Enter [Smart Guard Configuration]
2. A window of [Event and Action Configuration] will pop up.
3. Under [Insert Event], add a new alarm on the desired camera:
4. Select "Edge Motion" under [Select Event] popup window:
5. Check if motions are detected from the camera.
6. Click [OK] to save all settings.

Use the motion detection as an event to trigger the recording

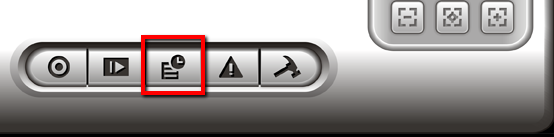

1. Enter [Schedule Configuration].
2. On the same camera, select [Record on Event] (blue bar) under [Configure].
3. Click [Select Event].

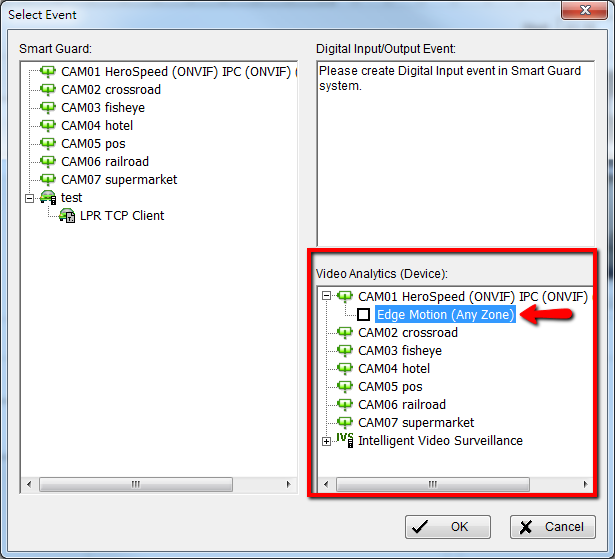

4. At this point, you should be able to see the [Edge Motion] option under [Video Analytics (Device)].
5. Select [Edge Motion] and click [OK] to save everything.

Start recording

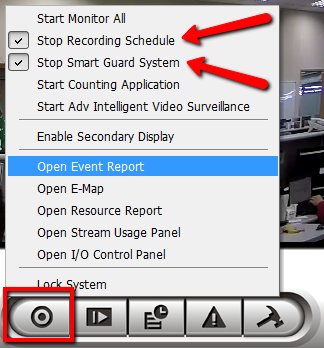

1. Click [Start Recording Schedule] and [Start Smart Guard System].
2. When motion is detected and recording, the status light on the grid will turn RED. When no motion is detected, the status light will turn BLUE.
